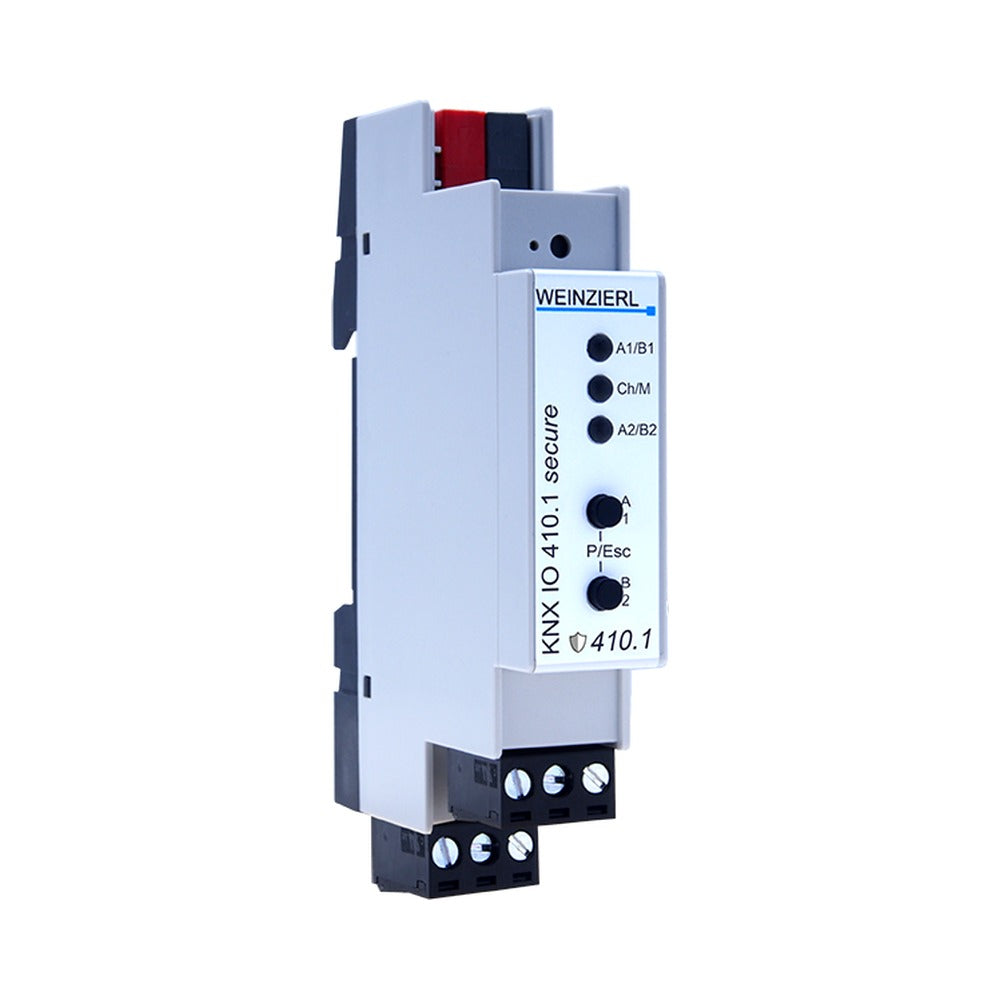

Weinzierl KNX IO 410.1 Secure

Compact KNX Secure binary input with 4 galvanically isolated inputs for conventional switches with an external voltage of 12 to 230 V. The application offers switching, dimming, shutter, value, scene and colour control as well as an operating-hours and pulse counter.

• Inputs: 4, 12–230 V, < 1 mA, galvanically isolated
• Signal rate: max. 100 ticks/s (DC), max. 10 ticks/s (AC)
• Logic: 16 independent logic or timer functions
• Security: KNX Data Security
• Local operation: 2 buttons and 3 multicolour LEDs
• Connections: KNX bus connector, 2 pluggable 3-pole screw connectors (0.34–2.5 mm²)
• Bus current: approx. 3 mA
• Mounting: DIN rail, width 1 unit (18 mm), approx. 50 g
• Manufacturer reference: 5513
