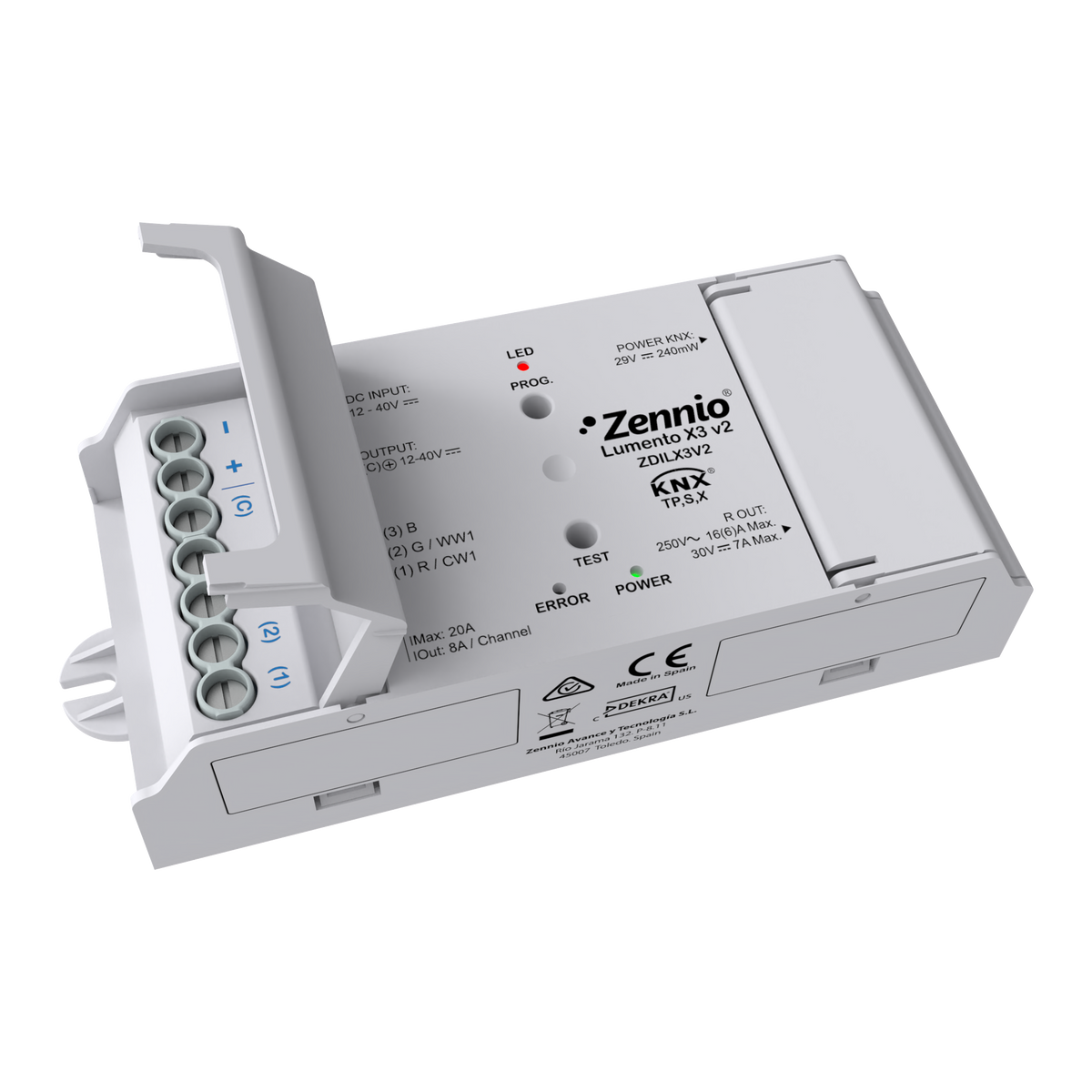

Zennio Lumento X3 v2 KNX Secure LED Dimmer, 3 Channels, 12–40 Vdc

Zennio Lumento X3 v2 three-channel KNX Secure constant-voltage PWM LED dimmer.

• Channels: 3 PWM outputs
• Supply: 12–40 Vdc
• Current: up to 8 A per channel, 20 A total
• PWM frequency: 1000 Hz
• Modes: independent channels, RGB or Tunable White + independent channel
• Power relay: 16 A output for LED power supply or independent use
• Functions: color-temperature and Human Centric Lighting control
• Manual test: local test button
• Security: KNX Secure
• Manufacturer reference: ZDILX3V2
