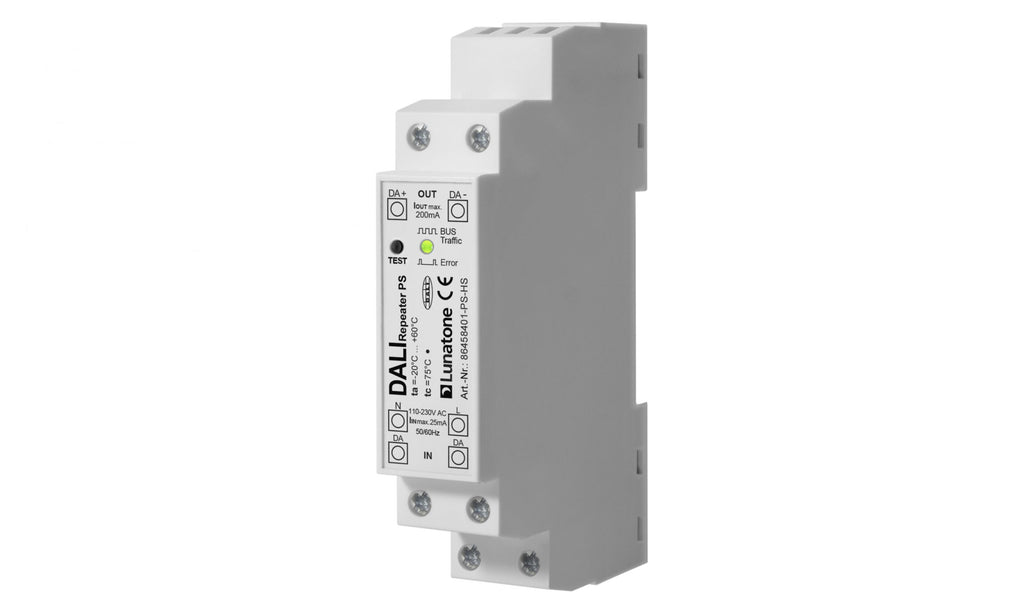

DALI repeater with 200 mA bus supply, 300 → 600 m, DIN rail – Lunatone

Lunatone DALI repeater with 200 mA bus supply, 300 → 600 m, DIN rail (DALI Repeater PS HS 86458401-PS-HS)

€274,00€331,54
excl. VATincl. VAT
Skip to product information
DALI repeater with 200 mA bus supply, 300 → 600 m, DIN rail – Lunatone
  • DALI repeater with 200 mA bus supply, 300 → 600 m, DIN rail – Lunatone
  • DALI repeater with 200 mA bus supply, 300 → 600 m, DIN rail – Lunatone
Lunatone DALI repeater with 200 mA bus supply, 300 → 600 m, DIN rail (DALI Repeater PS HS 86458401-PS-HS)

Lunatone DALI repeater with 200 mA bus supply, 300 → 600 m, DIN rail (DALI Repeater PS HS 86458401-PS-HS)

€274,00€331,54
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

DIN-rail DALI repeater with an integrated bus power supply. It galvanically separates two DALI lines and passes commands in both directions, extending the usable cable length from 300 m to 600 m (up to 3 repeaters in cascade); the system as a whole stays limited to 64 addresses. The built-in supply feeds the subordinate line, and a test button allows a quick function check.

  • Function: bidirectional DALI repeater, galvanic isolation, 300 → 600 m, up to 3 in cascade, max. 64 devices per system
  • Integrated bus supply: 200 mA guaranteed, 12–20.5 V DC, short-circuit proof
  • Supply: 120–240 V AC 50/60 Hz, max. 5.3 W
  • Mounting: DIN rail, 1 module (98 × 18 × 56 mm)
  • Protection: IP20 terminals / IP40 housing
  • Standard: DALI (IEC 62386-101), not DALI-2 certified
  • Manufacturer reference: 86458401-PS-HS
