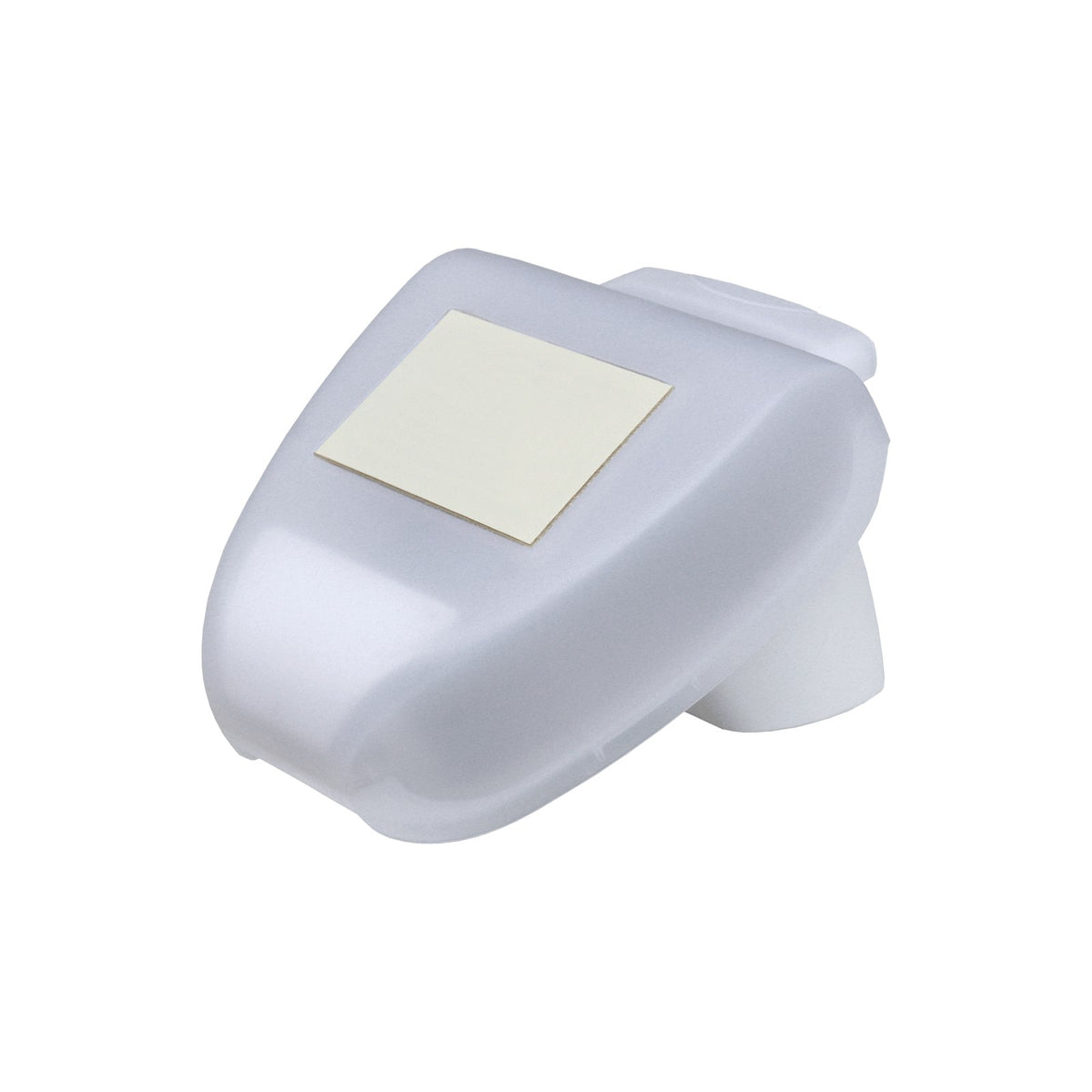

Elsner KNX L

Elsner KNX L – KNX Light Sensor

€155,46€188,11
excl. VATincl. VAT
Skip to product information
Elsner KNX L

Elsner KNX L – KNX Light Sensor

€155,46€188,11
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

Outdoor KNX brightness sensor (sun and light sensor) that measures illuminance and sends the value to the KNX system, with adjustable threshold outputs for twilight and daylight.

  • Brightness: 0…150,000 lux
  • Switching outputs: 6 outputs: 3 twilight thresholds (up to 1000 lux) and 3 daylight thresholds (1…99 klux)
  • Logic: 8 AND and 8 OR logic gates with 4 inputs each
  • Mounting: Wall or pole (2 hose clips for poles Ø 40…60 mm included)
  • Housing: Plastic, white/translucent, 96 × 77 × 118 mm (W × H × D), IP44
  • Ambient temperature: -30…+50 °C
  • Power supply: KNX bus, 30 V DC SELV, ≤ 10 mA
  • Manufacturer reference: 70119

Need help choosing compatible Elsner devices or programming the system? Virasmart in Riga provides KNX design, supply, programming and commissioning — contact our engineers.

Official Elsner product page
