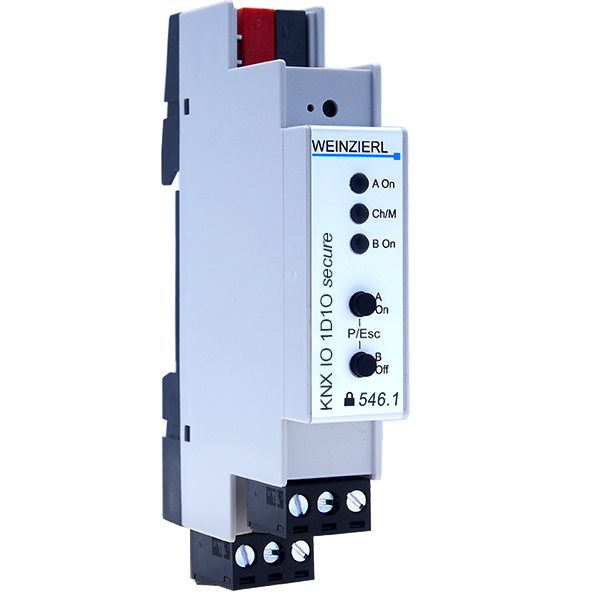

Weinzierl KNX IO 546.1 Secure (1D1O)

Compact dimming/switching actuator with one dimming channel for the connection of active electronic ballasts (ECG) with a 0/1–10 Vdc interface and one relay output. The relay output can be used for switching the load.

• Output for 0/1–10 Vdc / max. 50 mA
• Scenes, sequencer, staircase function, adjustable dimming curve
• Relay 250 Vac / 10 A, bistable
• Integrated logic and timer functions
• Also compatible with 0–10 Vdc actuators (valves)
• Connections: KNX, pluggable screw terminals for IO
• For DIN rail, width 1 unit (18 mm)
• Support of KNX Security

Manufacturer article number: 5337
