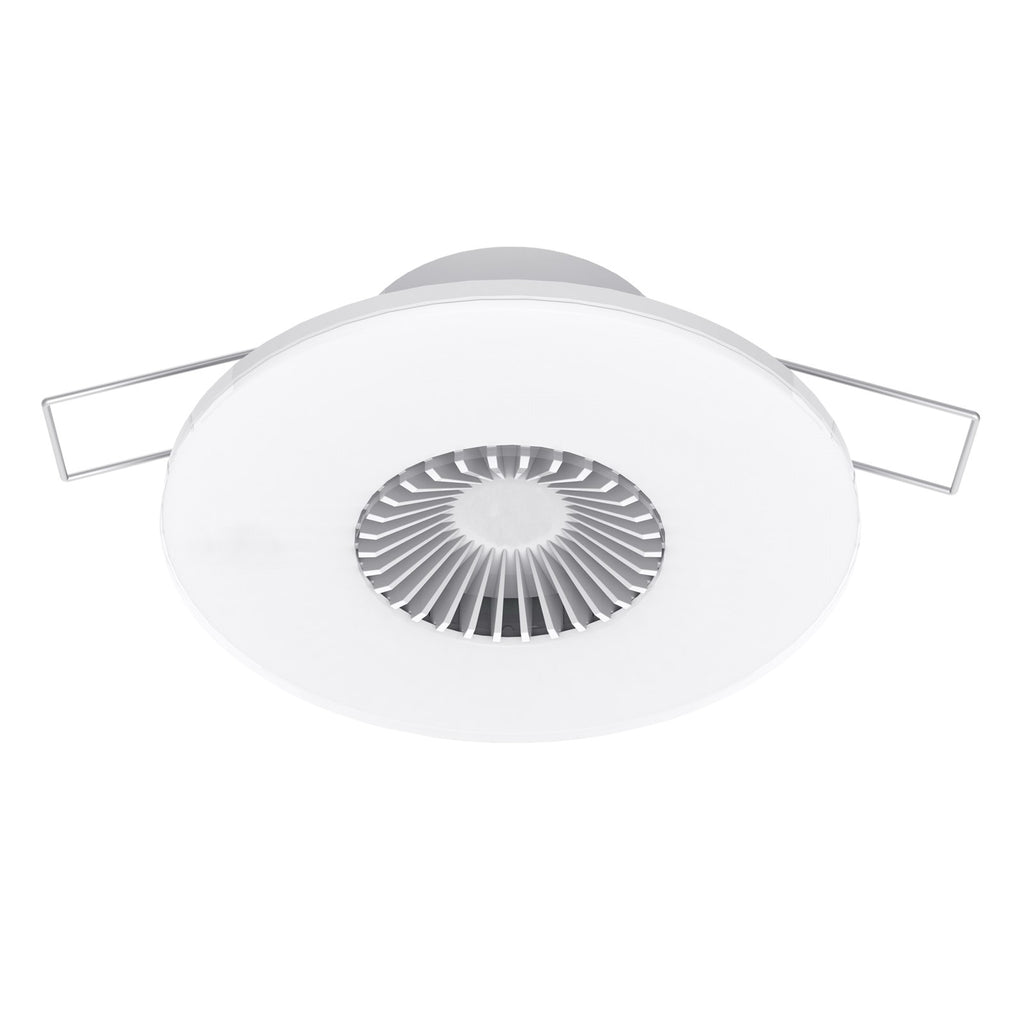

Built-in KNX sensor for temperature and humidity with award-winning glass surface for wall and ceiling installation. It calculates the dew point, controls heating/cooling and ventilation and can warn when the comfort field (DIN 1946) is left.

  • Measured values: Temperature -20…+60 °C, humidity 0…100 % RH; dew point calculation
  • Controllers: PI controller for heating/cooling and a second controller for ventilation (humidification/dehumidification)
  • Functions: Mixed values, threshold switching outputs, AND/OR logic gates, variable comparator

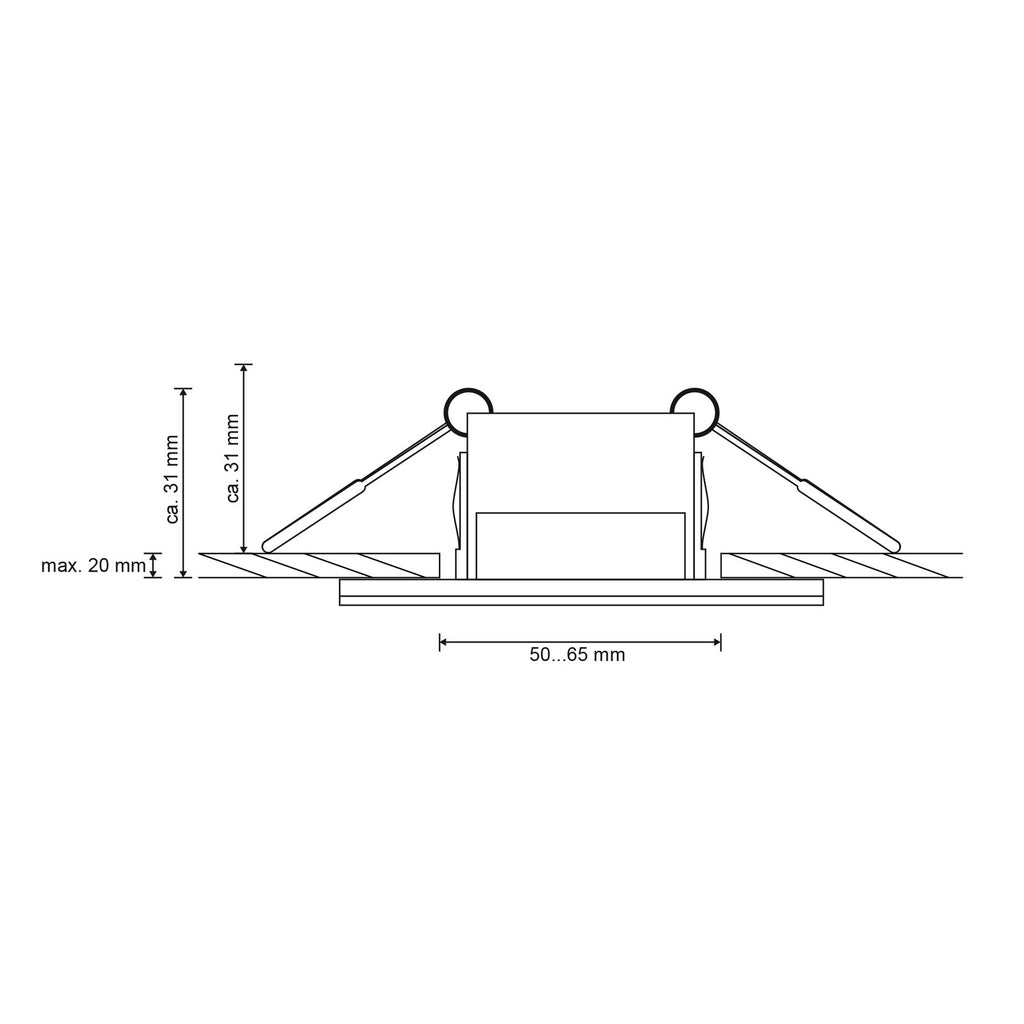

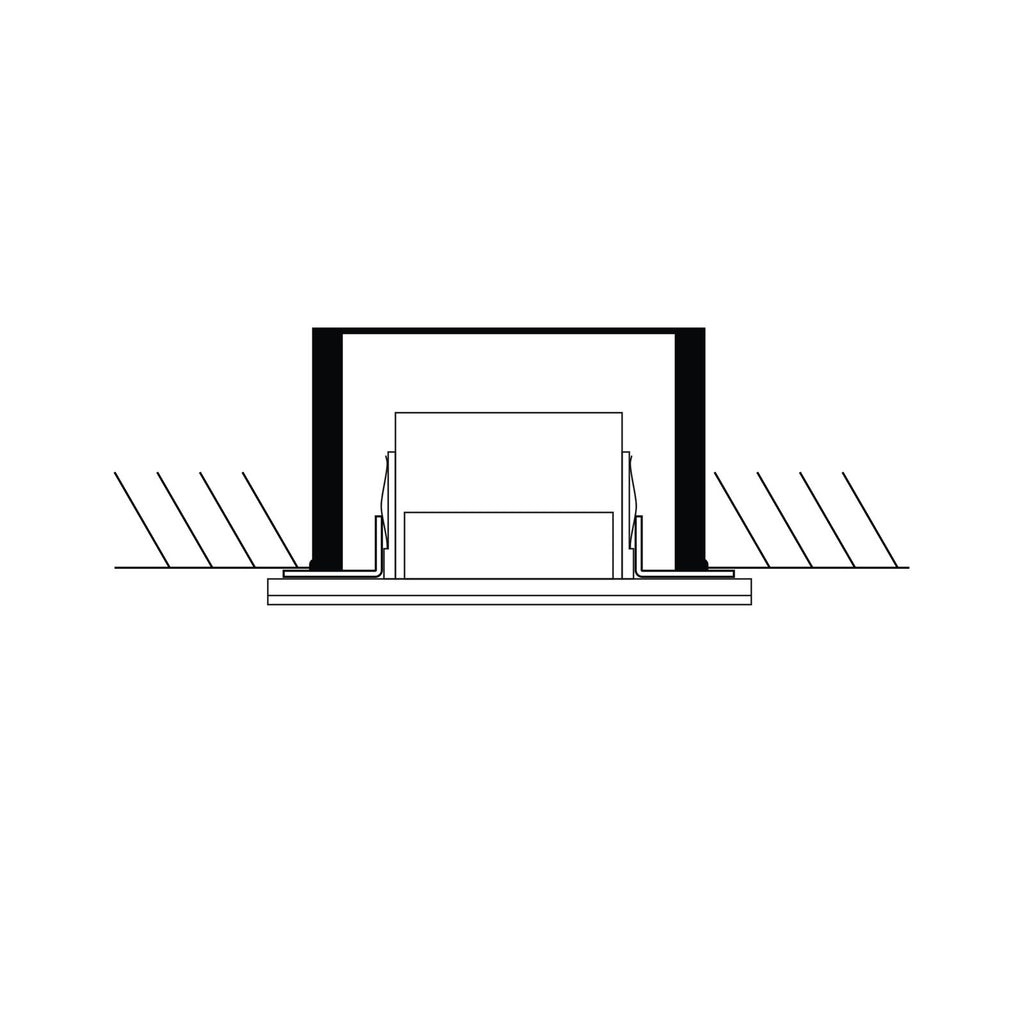

  • Mounting: Built-in, in false ceiling or connector socket (wall or ceiling); approx. 80 mm diameter, approx. 5 mm above surface, approx. 31 mm installation depth incl. clamps
  • Protection: IP30
  • Power supply: KNX bus, 30 V DC SELV, max. 10 mA
  • Colour: Pure white (similar to RAL 9010)
  • Manufacturer reference: 70669
