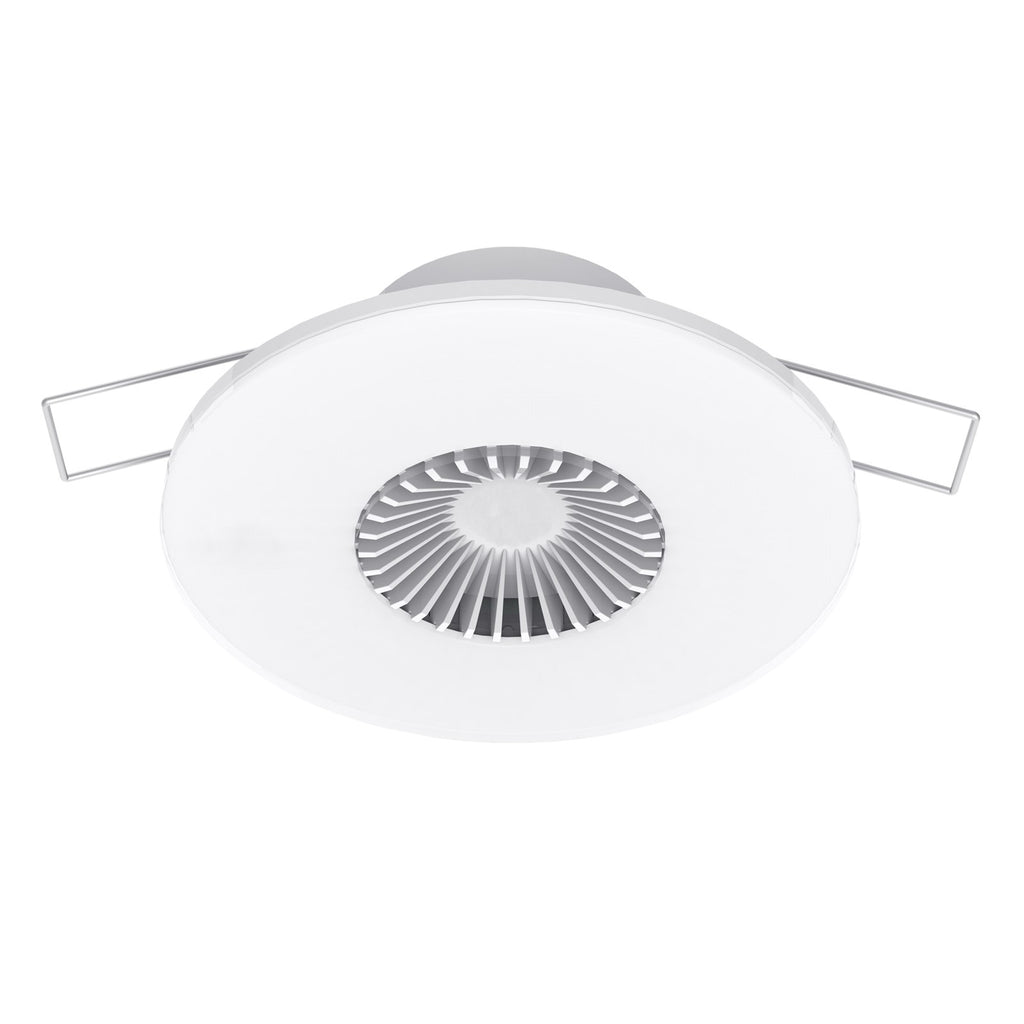

Built-in KNX temperature sensor with award-winning glass surface for wall and ceiling installation. It includes a PI controller for heating and cooling and can combine its reading with external values from the bus.

  • Measured value: Temperature -20…+60 °C, mixed value with external values
  • Controller: PI controller for heating (1 or 2 stages) and cooling (1 or 2 stages)
  • Functions: Threshold switching outputs, 4 AND and 4 OR logic gates, variable comparator

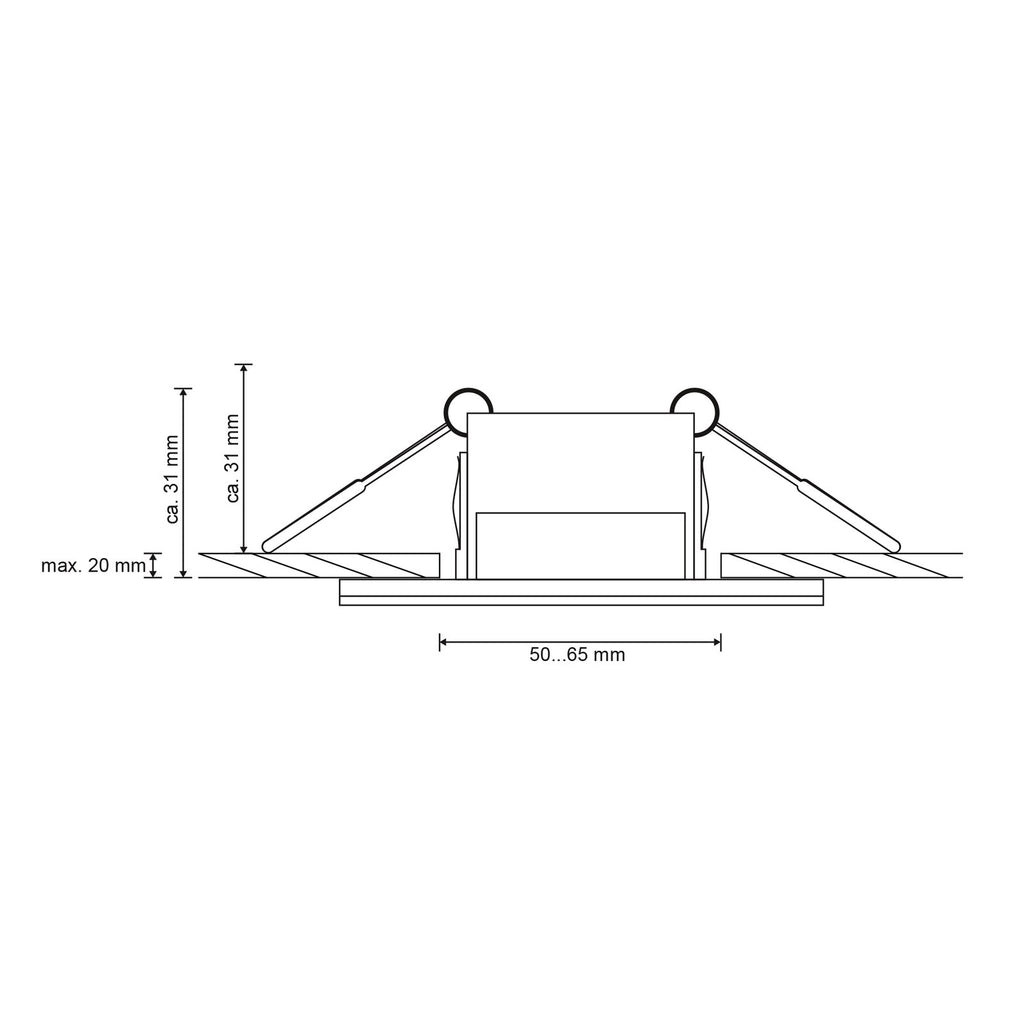

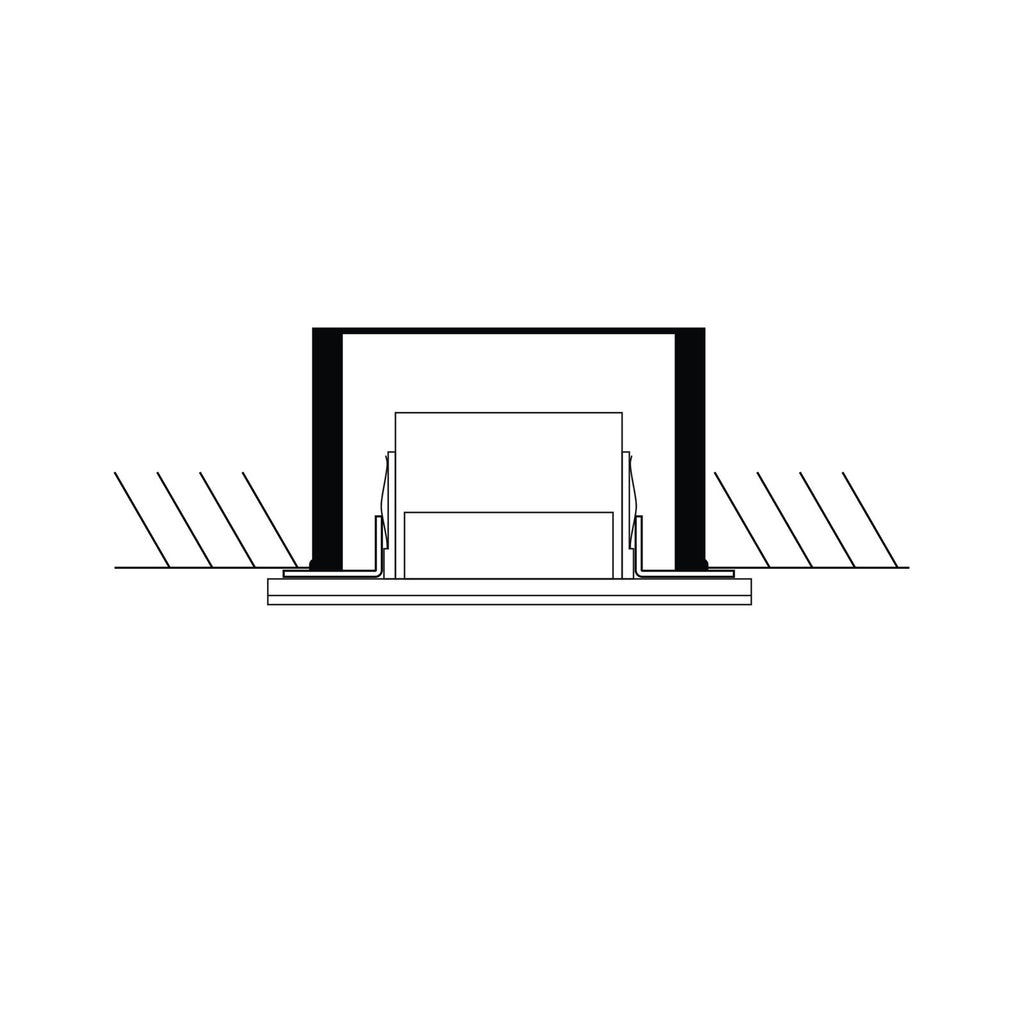

  • Mounting: Built-in, in false ceiling or connector socket (wall or ceiling); approx. 80 mm diameter, approx. 5 mm above surface, approx. 31 mm installation depth incl. clamps
  • Protection: IP30
  • Power supply: KNX bus, 30 V DC SELV, max. 10 mA
  • Colour: Pure white (similar to RAL 9010)
  • Manufacturer reference: 70659

Need help choosing compatible Elsner devices or programming the system? Virasmart in Riga provides KNX design, supply, programming and commissioning — contact our engineers.

Official Elsner product page
